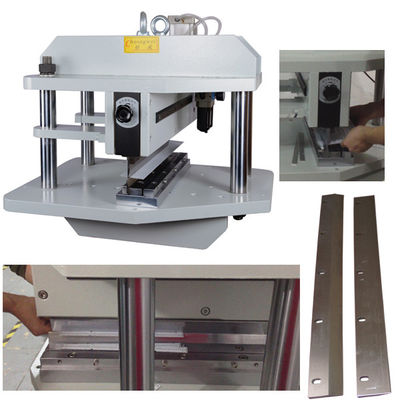

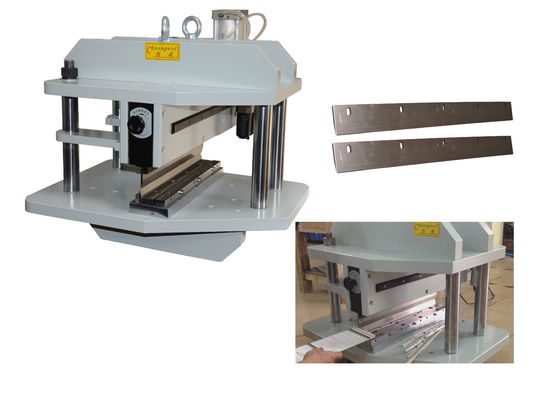

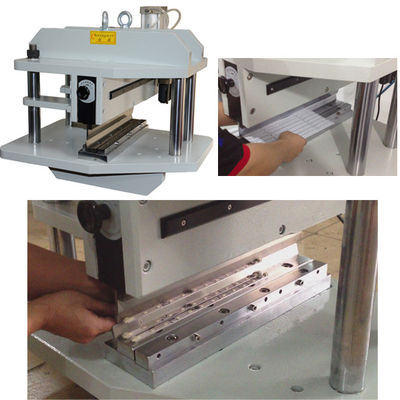

Rigid Aluminum And Copper Pre-scored PCB Depaneling With Robust Frame
V-CUT PCB shearing machine features:
1.New style rigid machine structure design,shear any length rigid and thick metal board more safely and easily.
2.Shear long boards directly,without turning PCB direction.
3.Shear process without vibrations due to pneumatic drive unit.
4.Shearing PCB without bending and tension stress.
5.PCB control operation is that operator stamps the foot pedal to shear PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.
The most professional PCB shearing machine manufacturers in China.
V-CUT PCB shearing machine:
1.Nice for shearing v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2.Shear rigid and thick board fluently.
3.Use pneumatic-driven and electromagnetic valve to operate.
V-CUT PCB shearing machine specifications:
| Model | CWVC-450 |
| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high speed steel |
| Max.PCB shearing length | unlimted |
| PCB shearing thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB shearing speed | due to operator skilled level |
| PCB shearing machine size | 900*760*750 |
| PCB shearing machine weight | 475kg |
Why us
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
